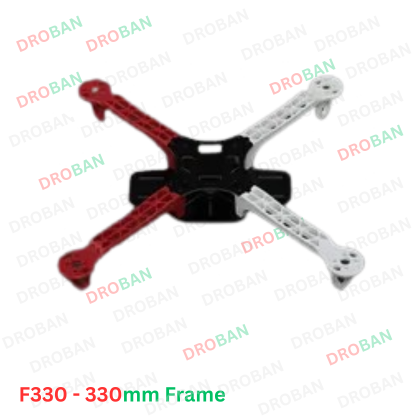

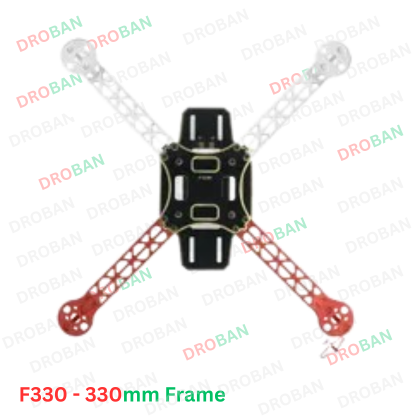

F330 Quadcopter Drone Frame – 330mm Glass Fiber Frame

Description

The F330 Drone Frame is a lightweight yet strong quadcopter frame designed for DIY drone builders and beginners.
Made from high-quality glass fiber, this frame offers excellent durability, vibration resistance, and stability during flight.

With a 330mm motor-to-motor diagonal wheelbase, the F330 frame is compatible with popular components like 22xx brushless motors, 8–10 inch propellers, KK2.1.5 / APM / Pixhawk flight controllers, making it perfect for learning, practice, and general-purpose multirotor projects.

---

⭐ Key Features

• Strong glass fiber material

• Lightweight & rigid structure

• Easy to assemble

• Good vibration damping

• Suitable for beginner & DIY drones

• Clean and symmetrical X-frame design

---

🔧 Technical Specifications

• Frame Model: F330

• Frame Type: Quadcopter (X-Frame)

• Wheelbase: 330mm (motor-to-motor diagonal)

• Material: Glass Fiber

• Supported Propeller Size: 8″ – 10″

• Compatible Motors: 22xx series

• Mounting Holes: Standard FC mounting

• Color: Black / Red

---

🔌 Compatibility

• Flight Controllers: KK2.1.5, APM, Pixhawk

• Motors: 2212, 2208, 2216

• ESCs: 20A – 40A

• Battery: 3S – 4S Li-Po

• RC Receivers: FlySky, FrSky, etc.

---

🎯 Applications

• DIY Quadcopter Builds

• Beginner & Training Drones

• Educational Drone Projects

• FPV Practice Drones

• Hobby RC Multirotors

---

📦 Package Includes

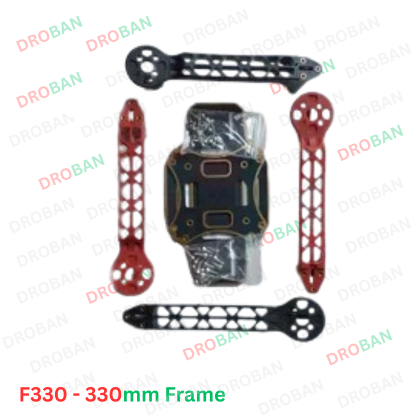

• 1 × F330 Drone Frame Kit (All mounting parts included)
