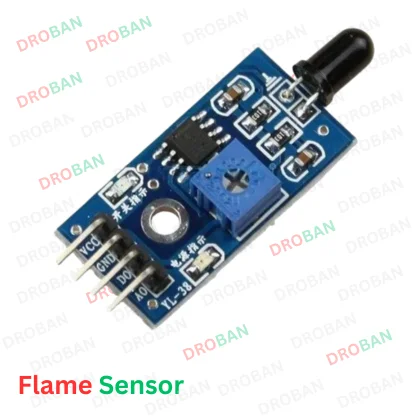

Flame Sensor Module (Fire Detection Sensor for Arduino and Robotics)

Description

The Flame Sensor Module is a reliable fire detection sensor designed to detect flame or fire sources using infrared light.
It can sense flame wavelengths typically in the 760nm – 1100nm range, making it ideal for fire alarm systems, safety projects, and robotics applications.

This module provides digital output (and some variants also support analog output), allowing easy integration with microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi. Its fast response and adjustable sensitivity make it a popular choice for DIY electronics, smart safety systems, and educational projects.  DROBAN

---

⭐ Key Features

• Detects flame and fire sources

• Fast response time

• Adjustable sensitivity (onboard potentiometer)

• Digital output (HIGH / LOW)

• Low power consumption

• Easy to interface with microcontrollers

---

🔧 Technical Specifications

• Sensor Type: Flame / Fire Detection Sensor

• Detection Wavelength: 760nm – 1100nm (Infrared)

• Output: Digital (Some versions support Analog)

• Operating Voltage: 3.3V – 5V DC

• Interface Pins: VCC, GND, DO (AO optional)

• Adjustable sensitivity via potentiometer

---

🔌 Compatibility

• Arduino (Uno, Nano, Mega)

• ESP32 / ESP8266

• STM32

• Raspberry Pi

• Robotics & Automation Controllers

---

📍 Typical Applications

• Fire Alarm Systems

• Flame Detection Projects

• Smart Safety Systems

• Robotics Fire Detection

• Home Automation

• DIY & Educational Electronics Projects

📦 Package Includes

1 × Flame Sensor Module
